Capacity = 300 litres

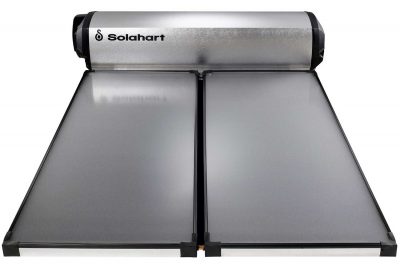

The Solahart LCSD Series is a roof mounted, open circuit system, designed to provide higher efficiency for use in low to medium solar gain areas.
The LCS collector features an aluminium absorber plate with all copper header and risers. The LCS collector’s absorber plate is coated with the Mirotherm® sputtered selective surface, widely used throughout the growing solar hot water markets in Europe. The Mirotherm absorption and anti-reflection layers provide high solar absorption and an infrared reflecting layer ensures low thermal emission, making the most of the available solar radiation.
The double ceramic lined tank has a protective sacrificial anode and the Free Heat models feature additional anode protection. The tank is equipped with an electric booster, alternatively an inline gas booster is available.
These systems are installed with the TRV (thermosiphon restrictor valve) OTP (over temperature protection) system to prevent over performance during periods of higher solar radiation and lower hot water draw off.
Warranty:
The following warranty applies to the Solahart LCSD series. Free Heat 10/5/5 warranty, 10 year cylinder and collector supply, 5 year parts, 5 year labour; 5/5/5 warranty, 5 year cylinder and collector supply, 5 year parts, 5 year labour; applies only when installed as a complete new system. Please contact our team for further information.
After more information or ready to discuss the installation of a Solahart LCSD Series?
The LCSD Series is eligible for Government rebates and incentives. Our team will be happy to help you with these.
Telephone us now on 1300 362 821 or complete the form below.
If you have a hot water emergency or problems with your current hot water system, please call us and tell us it is an emergency situation. We prioritise emergency hot water heater installations.
We look forward to assisting you further.
